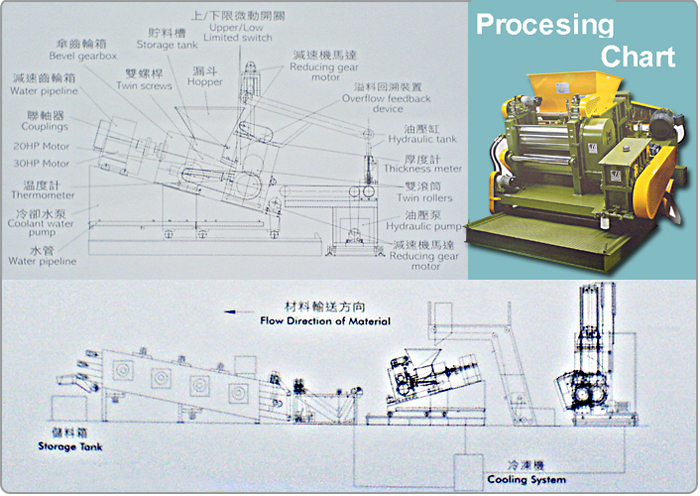

เครื่องออกยางสกรู(แบบ 2 หัวไดน์) TWIN TAPER SCREW EXTRUDER |
ปกติแล้วกระบวนการทำแผ่นต่อเนื่องนั้น เป็นการผสมผสานกันระหว่าง การรีด และม้วนรวมกัน ซึ่งทำให้ผลงานอออกมา มีคุณภาพต่ำ. เพื่อให้การผลิตดีขึ้น เราได้ออกแบบเป็นกรณีพิเศษ เป็น แกนเตเปอร์ คู่สำหรับอัดแบบ แผ่นต่อเนื่อง คือหลังจากการผสมจนได้ที่แล้วภายในถังผสม วัตถุดิบจะถูกลำเลียงมาที่ ฮ๊อปเปอร์ เข้าไปในเครื่อง ไบลเดอร์ด้วย แทนที่จะเข้าไปในเครื่องแบบหัวเดียว แต่เครื่องชนิดนี้สามารถทำให้มีประสิทธิภาพสูงขึ้น เมื่อวัตถุดิบออกมาแล้ว วัตถุดิบก็จะถูกม้วน และตัดออก. หากต้องการจะเปลี่ยนแปลงเป็นสีอื่นๆ ก็สามารถเปลี่ยนได้อย่างง่ายดาย. รวมทั้งความกว้าง ความหนา, ความร้อนต่ำ, ประหยัด และอัตราการเสียหายไม่มาก เป็นต้น และการรวมกระบวนการสายการผลิต จะลดค่าใช้จ่าย แต่เพิ่มผลผลิตอีกด้วย. | |
|
|
|
|
 |
|

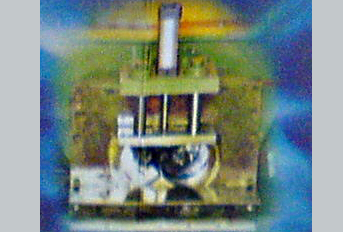

Pneumatic Materisl Stretching Device |
|

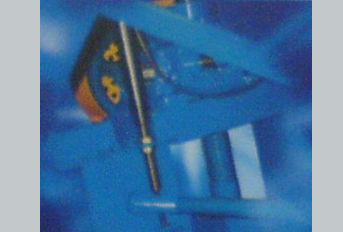

Electro - resistance Inductance Rule (LVDT) | |
|

|
|

|
Apply pneumatic pressure to stretch the material equally spreading on the surface of the roller. It is a good mer- chanical motion desing resulting the material output in more equilibrium and higher density. If equipped with electronic limited switch. it could after its speed automa- ticcallyto fit the condition of the prodution line. |
|
This rule uses on the thickness selting of the material.It detects the elasticity variation and alters teh setting during extrusion and hence to minimize rejection rate. |
|
|
|

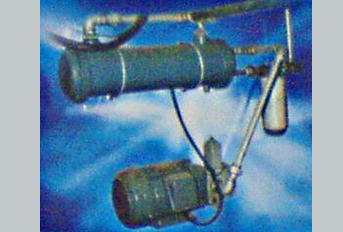

Gearbox cooling system |
|

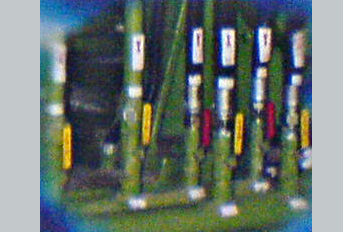

Indication on the In / Out of the waterline | |
|

|
|

|
The lubrication oil of the gearbox goes through the cooling system by individual the piping, passing the filter and deliverly to the bearings to provide efficiency librication result. the filter is desiged for easy exchange.The system keeps the whole gearbox working in low temperature condition, wihich could prolong the lifetime of the gearbox and bearings, reducing the cost of maintenance and good for environment. |
|
The visible indication on the In/Out of the waterline makes easy maintenance and good traing. It minimizes manual mistakes as well. |
|
|
| |
|
|
 |
|
|
|
|
|
 |
|
|
|
|
|
 |
|
|
|
|
|
Model |
TSP-20L |
TSP-20L |
TSP-20L |
TSP-20L |
TSP-20L |
Inverter Extrusion Motor |
10HP |
30HP |
40HP |
60HP |
100HP |
Roller Motor |
5HP |
20HP |
30HP |
50HP |
75HP |
Extruding Capacity / hour |
250L |
700L |
1250L |
2000L |
3000L |
Sheet Forming Width |
300 |
550 |
600 |
750 |
900 |
Sheet Forming Thickness |
2-8 |
3-15 |
3-15 |
3-15 |
3-20 |
Roller Dia & Width |
10"* 10"*400M/n |
12"* 12"*700M/n |
14"* 14"*800M/n |
16"* 16"*1050M/n |
18"* 18"*1200M/n |
Suitable for any kind of Blender |
10-20L |
75L |
110L |
150-200L |
300L |
Thickness Adjusting Motor |
3/4HP |
1HP |
2HP |
3HP |
5HP |
R.P.M. Extruder Roller |
1.5~201~10 |
1.5~201~10 |
1.5~201~10 |
1.5~201~10 |
1.5~201~10 |
Cooler Pump |
1/2HP |
1HP |
2HP |
3HP |
3HP |
Hopper Dimension |
500 |
750 |
800 |
950 |
1050 |
Control Panel |
1 |
1 |
1 |
1 |
1 |
Machine Dimension |
1750*1500*2600 |
2200*1750*3250 |
2600*2100*3300 |
2750*2200*3750 |
3300*2800*4700 |
|
|
|
|
|
| |
|
|
|
| |
 | |
|
| |
|
|
|
