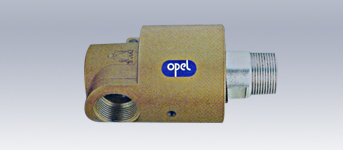

Service Conditions
Fluid	:	Water
	:	Cooling
Max Pressure	:	Air
Max Temperature	:	10 Kg / cm2
Max speed	:	100°C
		500 rpm

Specifications
T = Threaded type Rotor		W= Water
		A 356
		Q = flange Type Rotor
S = Single		RH = Right Thread
D = Double		LH = Left Thread

Single Type

Double Type

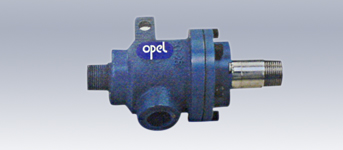

Service Conditions
Fluid	:	Hot Water
Max Pressure	:	10 kg / cm2
Max Temperature	:	130°C
Max Speed	:	1700 rpm

Specifications
FCO-45		T = Threaded Type Rotor
W = Hot Water		Q = Flange Type Rotor
S = Single		RH = Right Thread
D = Double		LH = Left Thread

Single Type

Double Type

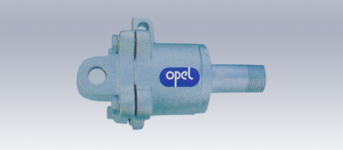

Service Conditions
Fluid	:	Steam
		Hot Water
Max Pressure
Max Temperature	:	10 kg / cm2
Max Speed	:	160°C
		500 rpm

Specifications
Z = Hot Water		T = Threaded Type Rotor - A 356
		Q = Flange Type Rotor
S = Single		RH = Right Thread
D = Double		LH = Left Thread

Single Type

Double Type

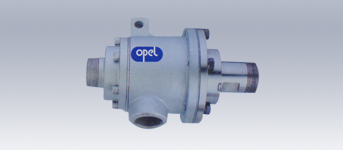

Service Conditions
Fluid	:	Steam
		Hot Oil
Max Pressure	:	20 kg / cm2
Max Temperature	:	250°C
Max Speed	:	500 rpm

Specifications
S = Steam		T = Threaded Type Rotor A 356
: FCD-45
O = Hot Oil		Q = Flange Type Rotor
S = Single		RH = Right Thread
D = Double		LH = Left Thread

Single Type

Double Type

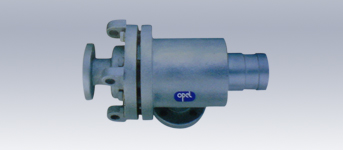

Service Conditions
Fluid	:	Hot Oil
		Steam
Max Pressure	:	17 kg / cm2
Max Temperature	:	280°C
Max Speed	:	200 rpm

Specifications
O = Hot Oil		T = Threaded Type Rotor A 356
: FCD-45
S = Single		Q = Flange Type Rotor
D = Double		RH = Right Thread
		LH = Left Thread

Single Type

Double Type

Service Conditions
Fluid	:	Hot Oil
		Hot water
		Steam
Max Pressure		17~35 kg / cm2
Max Temperature	:	280°C
Max Speed	:	100 rpm

Specifications
: FCD-45		O = Hot Oil
		Z = Flange Type Rotor
		S = Steam
		D = Double
		FX = Fixed Internal Pipe
		F = Flange Rotor, Inlet & Outlet

Double Type

Double Type

TSA TYPE

TSD TYPE
