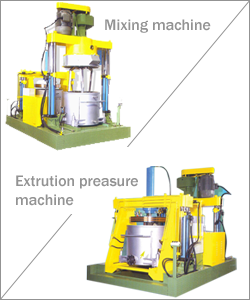

| PLANETARY MIXER WITH RAM PRESS | |
|
|
|
 |
|
Product feature :
The strring blades with a special angle Design increase a downward pressure. And epicyclic tracks fully utilize every inner space. in the tank. All these allow material. to be completely stirred and mixed.
Cooling system with a water carrent. Can validly slacher the rising of the temperature in the stirring tank
Liquid tank position is fixed by oil pressure. this make The machine more safely Accurately run at every operational step.
Easy to operate maintenance service is quick and attentive.
Applicaitons :
The machine is good for business that require weighty mix, such as the rubber business, plastic business Pentifrice business etc...
The machine is also good for business that require large quantities mix. | |
|
|
|
|
|
|
Mixing blades formixing machine. |
|

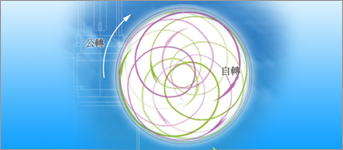

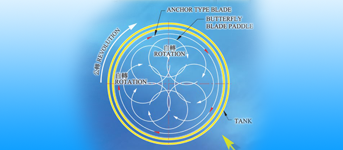

in one revolution front end of two blades rotation"s locus. |
|
|
| |
|
|
 |
|
|
|
|
|
|
|
|
|
|

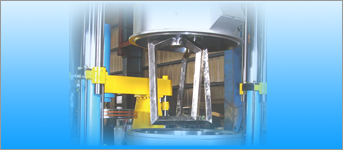

| - Revolution and rotation lucus of anchor blade and butterfly vane. |
|

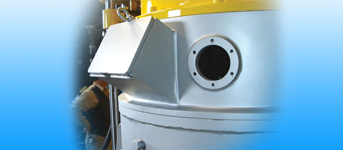

- View window and feeder gate. |
|
|
| |
|
|
|
|
|
|
|
|
|
|

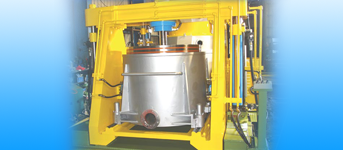

| - High pressure extrusion. Liquid tank can upleft 1 m Easy to discharge material. |
|

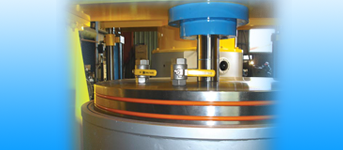

- Hydraulic cylinder extrusion unit. |
|
|
| |
|
|
|
|
|
|
|
|

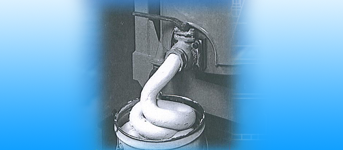

- Enlarged outet, accelerating. The squeenzing procudure. |
|

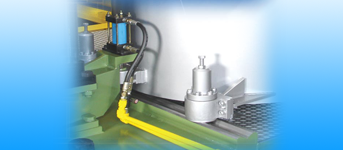

- The sliding track make the liquid tank move easily. |
|
|
| |
|
|
 |
|
|
|
|
|
| Specification (Refference data) | |
|
|
|
|
|
|
MODEL |
MOTOR |
TANK |

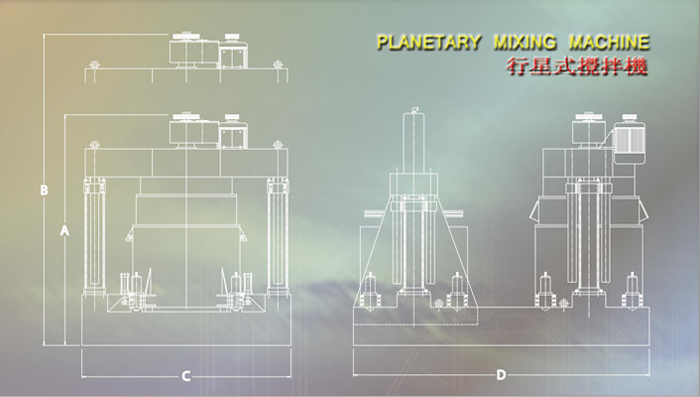

MACHINE DIMENSION M.M. |
KG.WEIGHT |
|
KW.MAIN |
KW.PUMP |
L.FULL CAPACITY |
M.M.INNER DIMENSION |
A |
B |
C |
D |
|
YFM-0005 |
0.75 |
|
5 |
215*140 |
860 |
1060 |
700 |
750 |
1500 |
|
YFM-0015 |
1.5 |
|
15 |
310*203 |
1080 |
1330 |
850 |
1100 |
2200 |
|
YFM-0050 |
3.7 |
1.5 |
50 |
470*290 |
1620 |
2020 |
1100 |
1550 |
3100 |
|
YFM-0100 |
5.5 |
1.5 |
100 |
600*420 |
2050 |
2550 |
1500 |
2100 |
4600 |
|
YFM-0200 |
7.5 |
1.5 |
200 |
695*530 |
2350 |
2900 |
1800 |
2400 |
6500 |
|
YFM-0300 |
11 |
1.5 |
300 |
850*540 |
2500 |
3110 |
2200 |
2700 |
7900 |
|
YFM-0400 |
15 |
2.2 |
400 |
910*620 |
2700 |
3320 |
2360 |
3050 |
9200 |
|
YFM-0600 |
22 |
3.7 |
600 |
1010*750 |
2970 |
3820 |
2620 |
3430 |
11000 |
|
YFM-0800 |
30 |
5.5 |
800 |
1100*850 |
3100 |
4000 |
2750 |
3650 |
12300 |
|
YFM-1000 |
37 |
5.5 |
1000 |
1180*915 |
3200 |
4220 |
2900 |
3850 |
14000 |
|
YFM-1300 |
45 |
7.5 |
1300 |
1300*980 |
3300 |
4400 |
3050 |
4000 |
15800 |
|
YFM-1500 |
50 |
7.5 |
1500 |
1380*1050 |
3400 |
4550 |
3200 |
4200 |
16900 |
|
YFM-1700 |
55 |
7.5 |
1700 |
1400*1110 |
3500 |
4600 |
3350 |
4400 |
18900 |
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
